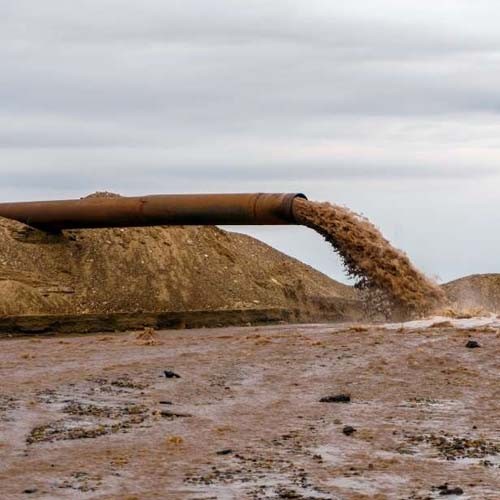

Application:The slurry delivery rubber hose is used for port,dock,harbors,rivers,lakes and other dredging projects.
Particularly suited to the work of dredging construction for dock and port,building project and so on.
The slurry hose is for suction and discharge pipeline of the dredgers.It is also called dredging discharge hose.
It can discharge slurry,mud,seawater,silt,sand,flood and etc.The dredging rubber hose has good stiffness and will not bend due to wind waves,
tides and other factors to cause form local arches and eddies of the inner rubber layer.
The slurry delivery hose will not cause abnormal wear brought by such conditions.
Features: The rubber layer has good elasticity and flexibility.
The outer rubber layer is ozone resistance,weather aging resistance and seawater erosion resistance.
The hose length,W.P.,hose OD and hose color can be produced by customer's request.
Inner tube:NR,BR,SBR.Wear resistant.
Reinforcement:Multi-plies high tensile strength fabrics.
Hose cover:NR,CR.ozone resistance,weather aging resistance and seawater erosion resistance.
Ideal working temperature: -20℃ to +80℃.
| Inside Diameter | Fabric layer | Working pressure | Max length | |
| lnch | mm | bar | m | |
| 1-3/4" | 45 | 4 | 10 | 61 |
| 2" | 51 | 4 | 10 | 61 |
| 2-1/2" | 64 | 4 | 10 | 61 |
| 3" | 76 | 4 | 10 | 61 |
| 3-1/2" | 89 | 4 | 10 | 61 |
| 4" | 102 | 4 | 10 | 61 |
| 4-1/2" | 115 | 4 | 10 | 20 |
| 5" | 127 | 4 | 10 | 20 |
| 6" | 152 | 4 | 10 | 20 |
| 8" | 203 | 4 | 10 | 20 |
| 10" | 254 | 6 | 10 | 10 |
| 12" | 305 | 6 | 10 | 10 |
| 14" | 355 | 6 | 10 | 10 |
