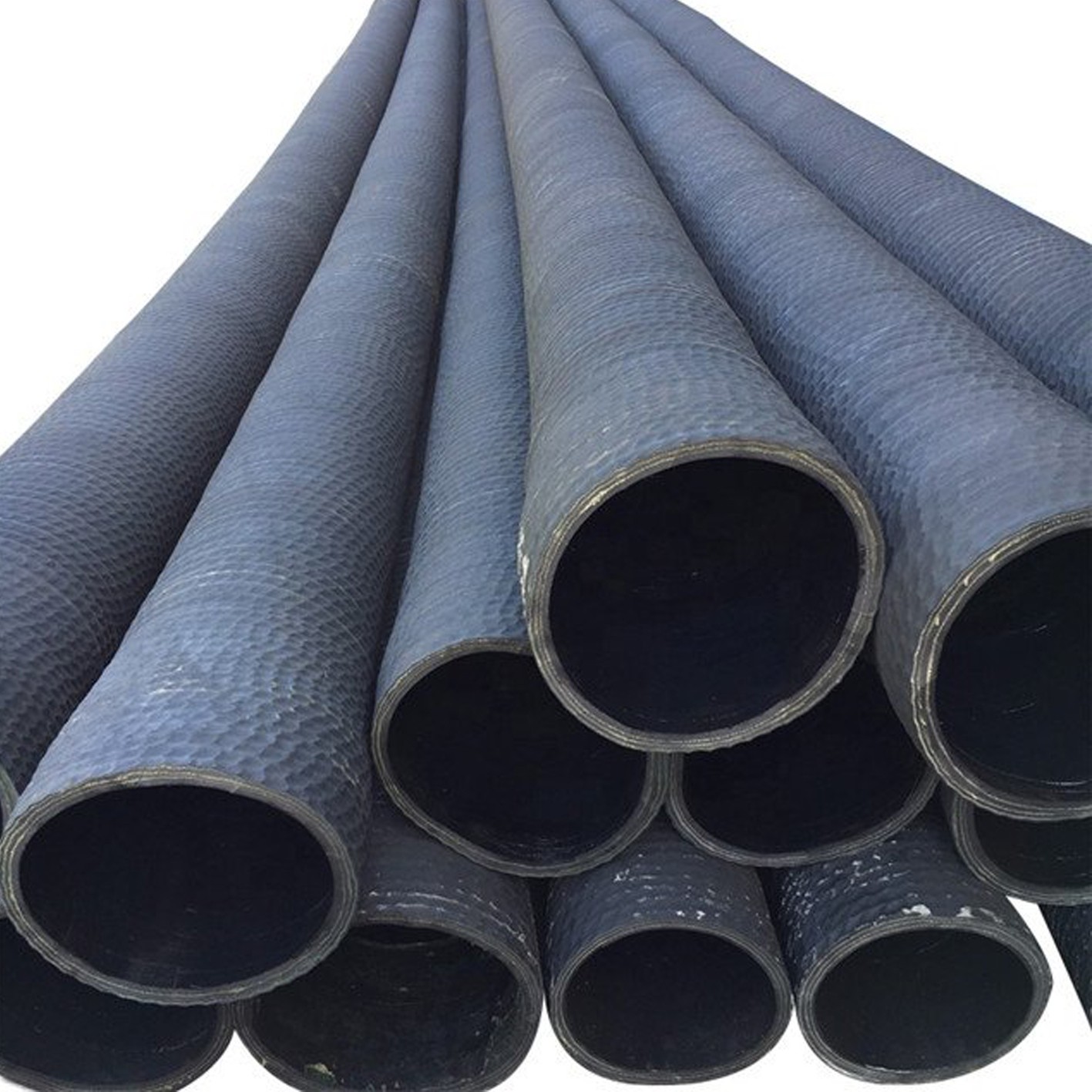

Water suction and discharge rubber hose

Inner Tube Black SBR compound synthetic rubber
Reinforcement High tensile textile cord with helix steel wire
Out Cover Black NR,SBR,wrapped surface.
Temperature: -20℃ to 80℃
Safety factor 3:1
Handle sewage,waste water.etc.It is designed for full suction and discharge pressure.weather and abrasion resistant

I.D.		O.D.	Reinforcement	W.P.	Length/roll	Weight
Inch	mm	mm	Ply	Bar	Meters	Kg/m
3/4"	19	30.4	2	10	60	0.67
1"	25	36.4	2	10	60	0.84
1-1/4"	32	44.8	2	10	60	1.2
1-1/2"	38	51.4	2	10	60	1.5
1-3/4"	45	58.4	2	10	60	1.73
2"	51	64.4	2	10	60	1.93
2-1/2"	64	78.4	2	10	60	2.55
3"	76	90.8	2	10	60	3.08
3-1/2"	89	106.2	4	10	60	4.37
4"	102	119.6	4	10	60	4.97
5"	127	146.2	4	10	60	6.77
6"	152	171.6	4	10	60	8.17
8"	203	224.8	4	10	60	12.45
10"	254	280	4	10	10	19.53
12"	304	332.6	4	10	10	26.47

I.D.		O.D.	Reinforcement	W.P.	Length/roll	Weight
Inch	mm	mm	Ply	Bar	Meters	Kg/m
3/4"	19	30.8	2	20	60	0.73
1"	25	36.8	2	20	60	0.9
1-1/4"	32	46.4	4	20	60	1.3
1-1/2"	38	53	4	20	60	1.61
1-3/4"	45	60.8	4	20	60	2.06
2"	51	66.8	4	20	60	2.3
2-1/2"	64	81.2	4	20	60	3.03
3"	76	93.2	4	20	60	3.53
3-1/2"	89	107.4	4	20	60	4.56
4"	102	120.4	4	20	60	5.16
5"	127	149.8	6	20	60	7.97
6"	152	174.8	6	20	60	9.41
8"	203	231.2	6	20	60	15.74
10"	254	286.4	6	20	10	23.67
12"	304	337.4	6	20	10	30.15
