PA 12 Nylon Hose - imperial size

PA 12 Nylon Hose -  imperial size
Hose material:PA 12 polyamide (Nylon)
Working temp.:From -40°C up to +80°C,  (for water-based media +70°C)
Standards - SAE J 844 (from 1/8” up to 1/2”).

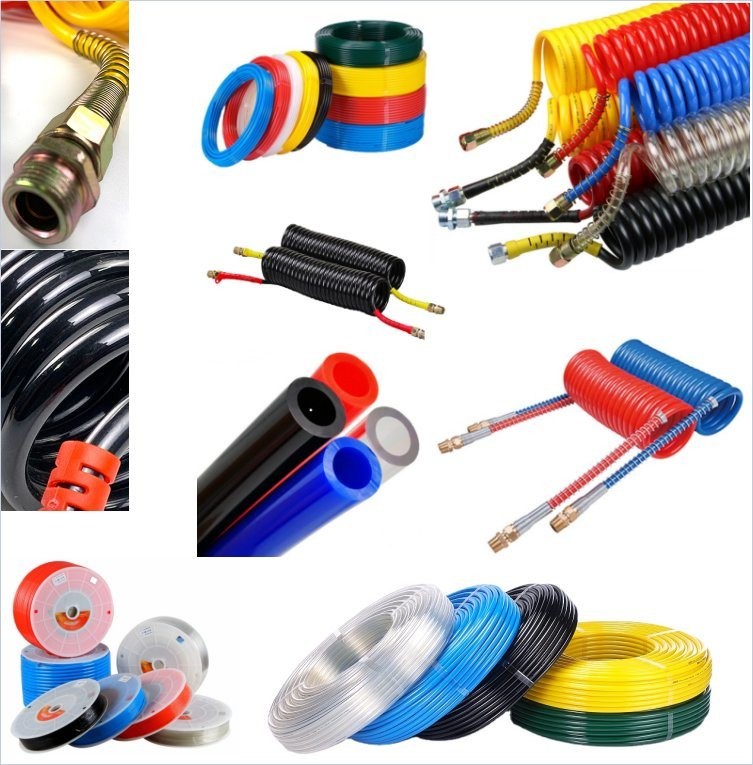

Lightweight, flexible hose with calibrated outside diameter designed for pneumatic, hydraulic, fuel and oil installations,lubrication and chemicals. Available in a wide range of colours: natural, black, blue, green, red, yellow and orange.

code	O.D. [inch]	O.D. [mm]	l.D. [mm]	working press. 23°c [bar]	bursting press. 23°C[bar]	bending radius [mm]	Roll length [m]
PA12-02	1/8"	3.17	2	23	70	9.4	100/200
PA12-03	3/16"	4.76	3	28	84	19.1	100/200
PA12-04	1/4"	6.35	4.3	28	84	25.4	100/200
PA12-05	5/16"	7.93	5.9	23	70	31.8	100/200
PA12-06	3/8"	9.52	6.98	21	64	75	50/100
PA12-08	1/2"	12.7	9.53	19	56	110	50/100
