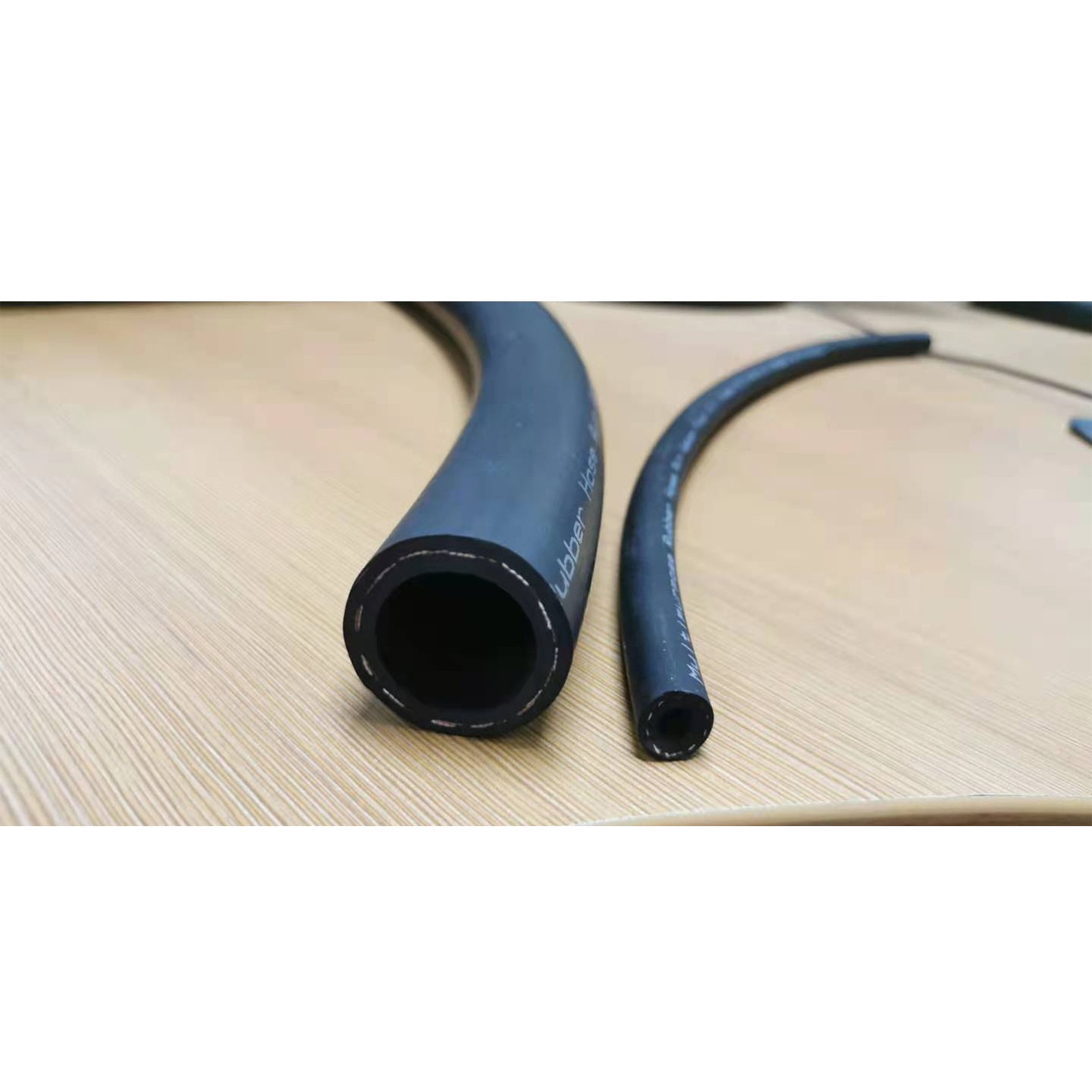

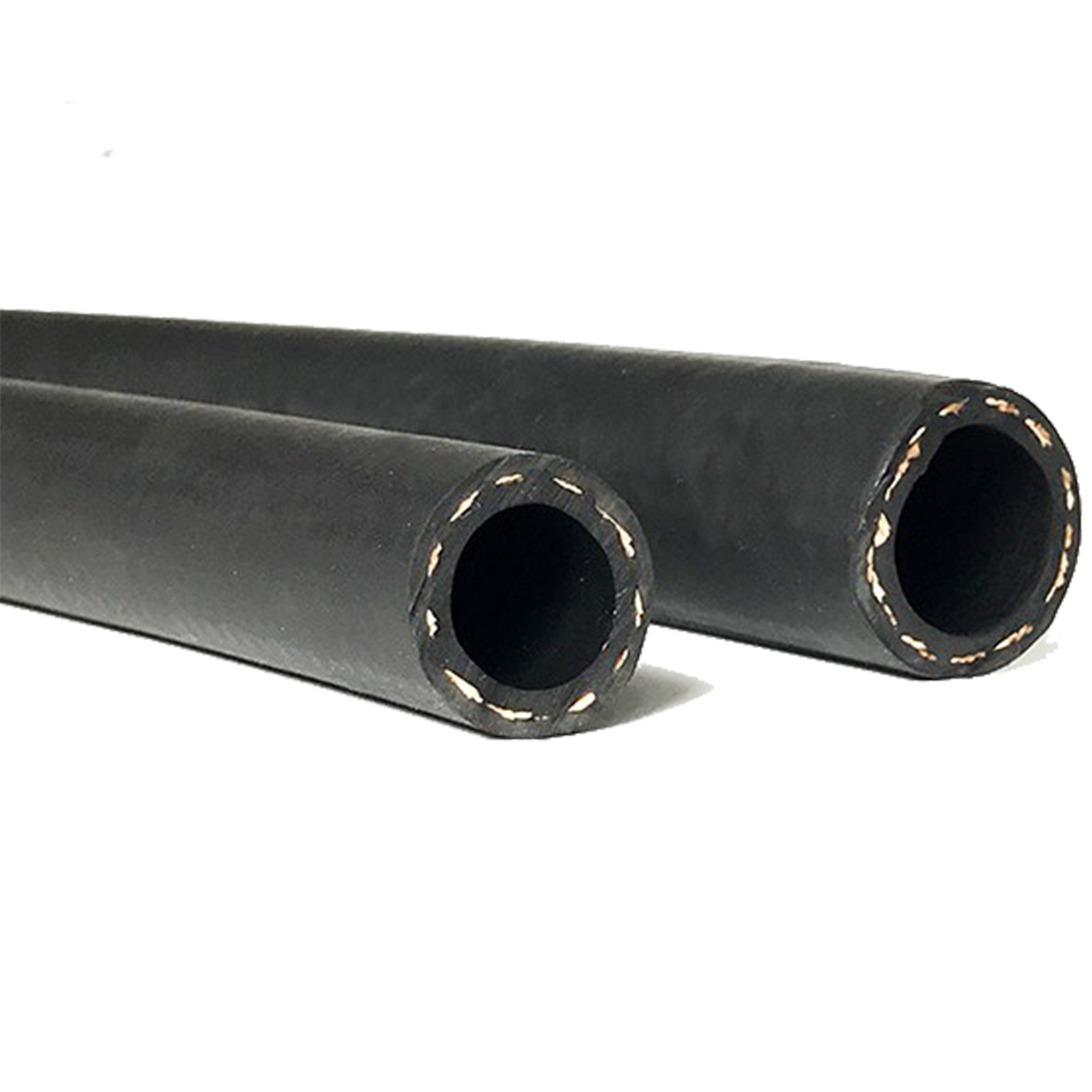

Multi-purpose Rubber Hose Air water fuel diesel hose

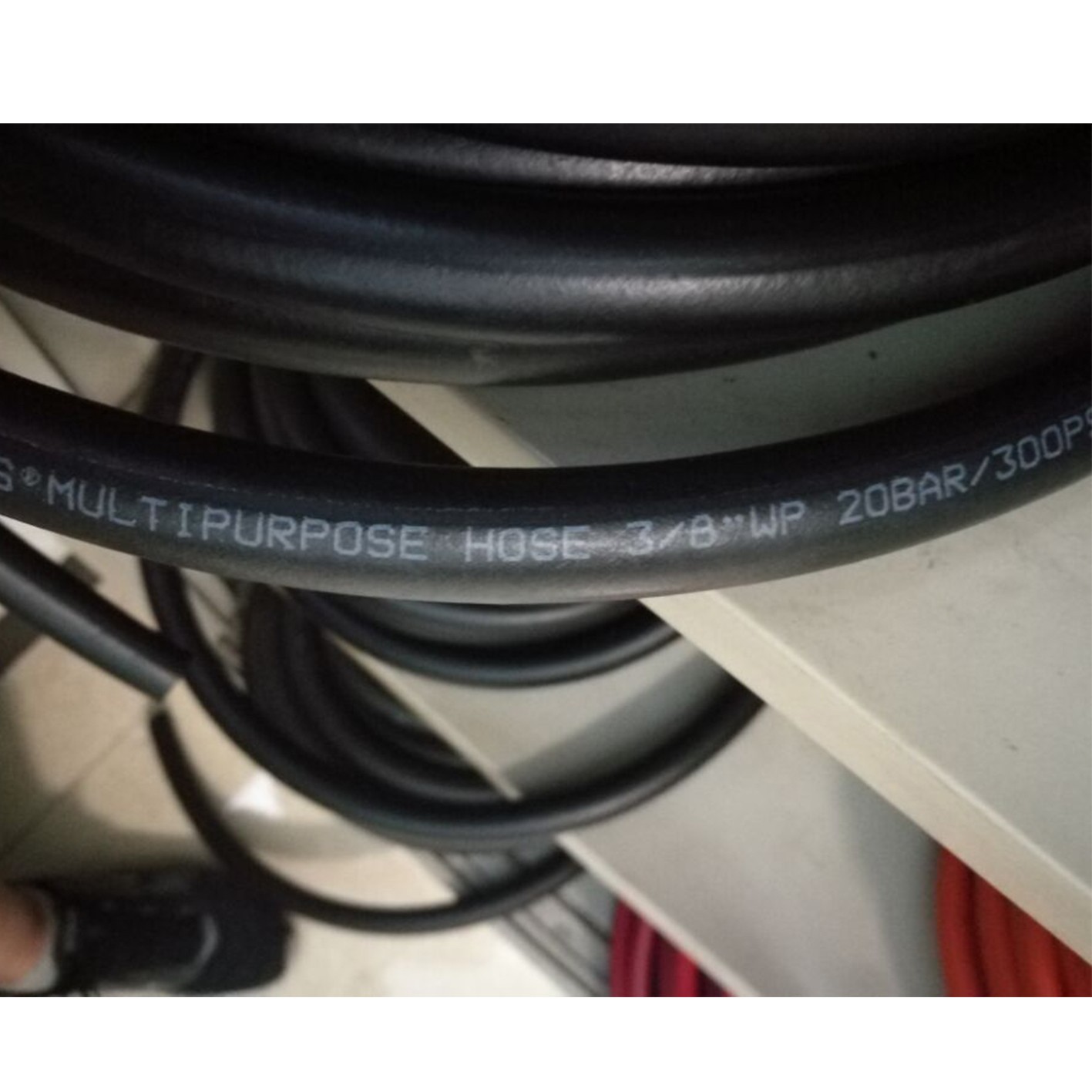

Multi-purpose Rubber Hose 20bar Smooth/Textile
Tube: black, smooth, synthetic rubber

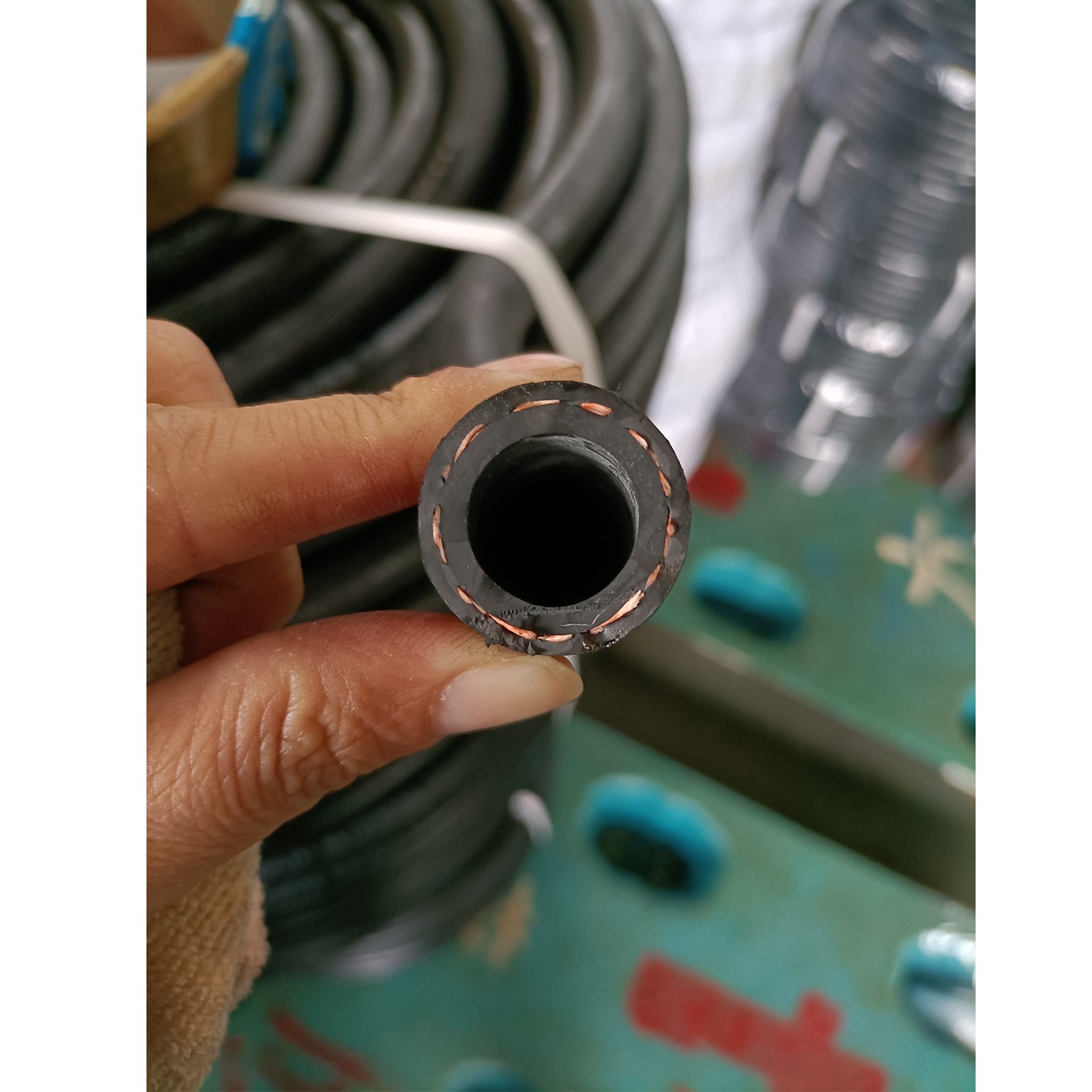

Reinforcement: high tensile synthetic yarn braided or spiraled
Cover: black or red or yellow, smooth synthetic rubber, abrasion, weather and abrasion resistant
Application: for a variety of general purposes in industries, construction sites and mines.
Temp Range: -35℃ to 80℃

l.D.		O.D.	Work Pressure	Burst Pressure	Max.Length	Weight
inch	mm	mm	bar	bar	m	Kg/m
3/16"	4.8	12	20	60	100	0.15
1/4"	6.4	13	20	60	100	0.167
5/16"	7.9	15	20	60	100	0.22
3/8"	9.5	17	20	60	100	0.27
1/2"	12.7	21	20	60	100	0.37
5/8"	15.9	26	20	60	50	0.5
3/4"	19.1	29	20	60	50	0.65
1"	25.4	36	20	60	50	0.85
1-1/4"	31.8	44	15	45	50	0.95
