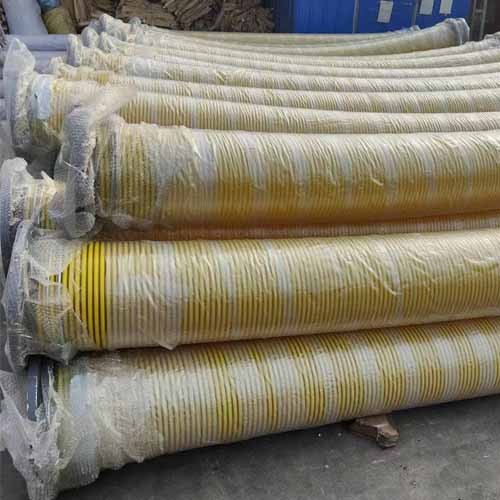

PVC suction hose with fittings,camlocks,flanges,bauer fittings
Material: PVC synthetic material, rigid PVC spiral plastic rib.
Fittings:aluminum camlock,nylon camlock,PP camlock,flanges,Bauer fittings and so on.
Temperature: -20℃-+65℃.Light weight, transparent, small bending radius, resistance to negative pressure.Suitable for vacuum suction of powder, particles, water, oil, etc. in industrial dust removal and civil engineering.
| ID | OD | W.P. | B.P. | Roll length | |||
| Inch | mm | mm | bar | bar | meters | ||
| 1" | 25 | 31 | 8 | 24 | 30 | ||
| 1-1/4" | 32 | 38 | 8 | 24 | 30 | ||
| 1-1/2" | 38 | 45 | 8 | 24 | 30 | ||
| 2" | 51 | 57 | 7 | 21 | 30 | ||
| 2-1/2" | 64 | 71 | 6 | 18 | 30 | ||
| 3" | 76 | 85 | 5 | 15 | 30 | ||
| 4" | 102 | 112.6 | 5 | 15 | 30 | ||
| 5" | 125 | 137 | 4 | 12 | 30 | ||
| 6" | 152 | 167 | 4 | 12 | 30 | ||
| 8" | 200 | 216 | 3 | 9 | 8 | ||
